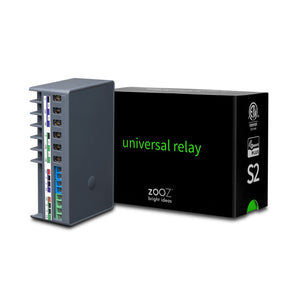

Zooz Z-Wave Plus 700 Series Universal Relay ZEN17 with 2 NO & NC Relays (20A, 10A)

Get More Done

PRODUCT HIGHLIGHTS

• THIS LISTING IS FOR THE NEW AU/NZ VERSION AND THE PREVIOUS 700 SERIES VERSION ONLY. CLICK HERE FOR THE NEW 800 SERIES LONG-RANGE SENSORS FOR US REGION!
• 2 NO or NC relays to turn almost any load into a Z-Wave device (use either the normally closed or normally open relay for R1 and R2 at a time)

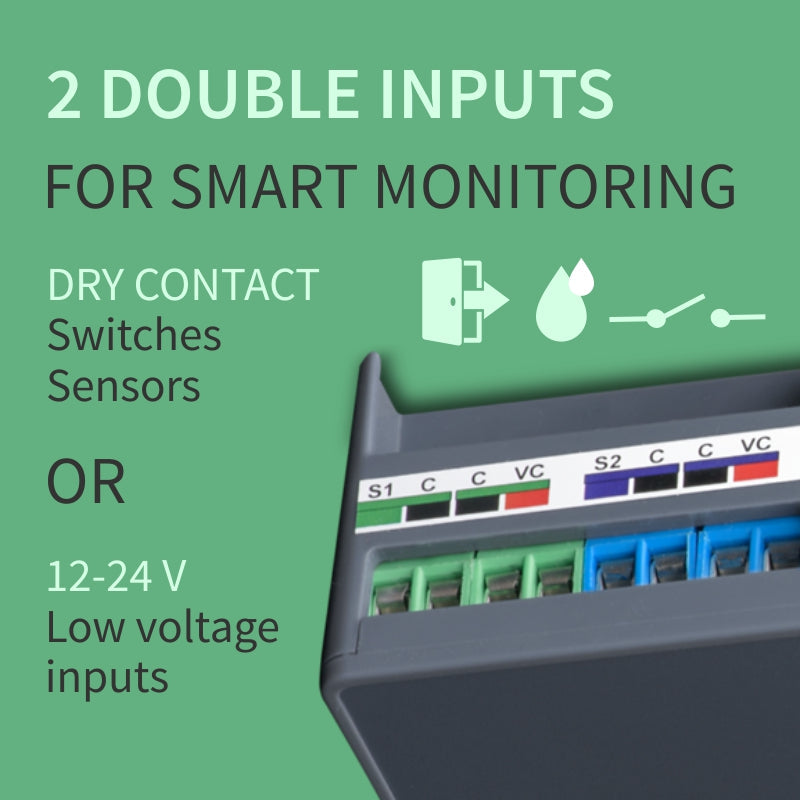

• 2 Dry Contact or 12-24 V inputs to monitor HVAC systems, magnetic door sensors, or analog leak alarms (use either dry contact or 12-24 V input for R1 and R2 at a time, never apply voltage to the Sw terminals)
• What's the difference between the ZEN17 and the ZEN16 model? Read here!
• Automate up / down DC motors in screens, awnings, motorized blinds
• Control sprinkler systems, commercial gates, garage doors (will NOT work with MyQ or other smart openers), pool pumps, whole-house fans, landscape lighting, and more

• 700 Series Chip: stronger signal repeater and S2 Authenticated security for a more reliable network than ever
• Powered by USB C or 12-24 V (AC/DC): power supply NOT included (get it here)

• Use optional wall switches for manual control of connected devices
• Wall-mount ready
• 5-year warranty and lifetime tech support
• Check out ZEN17 Frequently Asked Questions

NOTE: Z-Wave gateway controller required - sold separately.

PRODUCT CONDITION

We may have this product available in open box, refurbished, or used condition - just check the variant buttons under the product price for availability. All of our recycled inventory has been tested for both manual and Z-Wave control and is fully functional at the time of shipment. Here is what you can expect when ordering your device:

• NEW: brand new product, as delivered by the factory
• OPEN BOX: like new item in excellent condition, it may come in partially damaged or not original packaging; all accessories included; hardware and firmware version may be different than the brand new device description
• REFURBISHED: good condition, may show slight signs of wear, may not include all accessories (like product manual, USB cable, etc); hardware and firmware version may be different than the brand new device description
• USED (FINAL SALE): used condition, may show signs of wear, may not include accessories (like product manual, USB cable, etc) or parts of the packaging; may show signs of wear like scratches; FINAL SALE: not eligible for return, replacement, or warranty service; hardware and firmware version may be different than the brand new device description

Z-WAVE FREQUENCY

This product is available in different Z-Wave frequencies so please make sure you choose the correct region before checking out. You need to select the same frequency / region as your hub when buying Z-Wave devices for them to include to your system. If you're not sure which frequency your hub operates on, please contact your solution provider first. Here is what each option stands for:

• US/CA/MX: 908.42 MHz (used primarily in US, Canada, and Mexico, the default option for all products)
• EU/UK: 868.42 MHz (used primarily in Europe)
• AU/NZ: 921.4 MHz (used primarily in Australia and New Zealand)

GET POWER SUPPLY

DC:OR USB:

INSTALLATION

Follow the appropriate diagram to wire the Universal Relay according to your application. If you don't see a diagram describing your set-up, please contact us to request help with the installation. Remember to always turn power off at the breaker before handling the wires. Never apply any voltage to the Sw input terminals!

Once you've completed the wiring, power the Universal Relay up with a USB C and a standard power adapter (sold separately) or a direct connection to 12 / 24 V power source.

Now add the Universal Relay to your hub: initiate inclusion (pairing mode) and click the Z-Wave button on the device 3 times quickly. The LED indicator will blink to indicate communication and stay on for 2 seconds to confirm inclusion.

You’ll most likely see 3 new on/off devices in your app:

2 channels for on/off control of each relay
1 master node to control all relays at the same time and to access and adjust advanced settings in (if your hub supports parameter input)

WORKS WITH

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.

SPECIFICATIONS

• Z-Wave Frequency: 908.42 MHz (US, CA, MX) / 921.4 MHz (AU, NZ) / 868.42 MHz (EU) - choose your region before adding this product to cart
• Power: 12 - 24 V / USB C
• Maximum Load: NO relays: 20 A, NC Relays: 10 A
• Range: Up to 200 feet line of sight

• Installation and Use: Indoor Only
• Operating Temperature: 32-104° F (0-40° C)
• Dimensions: 4" x 2.5" x 1.5"
