Zooz 700 Series Z-Wave Plus S2 MultiRelay ZEN16 VER. 2.0 with 3 Dry Contact Relays (20A, 15A, 15A)

Get It Done

PRODUCT HIGHLIGHTS

• 3 Powerful Dry Contact Relays to add Z-Wave control to any 12 - 240 V load under 15A / 20A
• NEW VER. 2.0: 700 Series Z-Wave chip for more range and faster communication; more advanced settings to separate inputs and outputs on the device for a more customized application and control
• What's the difference between the ZEN16 and the ZEN17 model? Read here!
• Perfect for garage door (will NOT work with MyQ or other smart openers), gas fireplace, sprinkler, pool pump, landscape lights, doorbell button, or whole house fan automation
• Powered by USB C or 12-24 V (AC/DC) - power supply NOT included, USB C cable included (do NOT use laptop or tablet chargers to power the ZEN16!)

• Add optional wall switches for physical control of connected devices (do NOT apply Voltage to the input terminals, they're dry contact only)
• Wall-mount ready
• Acts as signal repeater for your Z-Wave network

• S2 security protocol and Z-Wave Plus chip for faster and more reliable communication
• Remembers and restores on/off status after power failure
• 1-year warranty + lifetime tech support
• Check out ZEN16 Frequently Asked Questions

NOTE: Z-Wave gateway controller required - sold separately.

PRODUCT CONDITION

We may have this product available in open box, refurbished, or used condition - just check the variant buttons under the product price for availability. All of our recycled inventory has been tested for both manual and Z-Wave control and is fully functional at the time of shipment. Here is what you can expect when ordering your device:

• NEW: brand new product, as delivered by the factory
• OPEN BOX: like new item in excellent condition, it may come in partially damaged or not original packaging; all accessories included; hardware and firmware version may be different than the brand new device description
• REFURBISHED: good condition, may show slight signs of wear, may not include all accessories (like product manual, USB cable, etc); hardware and firmware version may be different than the brand new device description
• USED (FINAL SALE): used condition, may show signs of wear, may not include accessories (like product manual, USB cable, etc) or parts of the packaging; may show signs of wear like scratches; FINAL SALE: not eligible for return, replacement, or warranty service; hardware and firmware version may be different than the brand new device description

SPECIFICATIONS

• Z-Wave Signal Frequency: 908.42 MHz (US/MX/CA)
• Power: 12 - 24 V / USB C
• Maximum Load: Relay 1: 15 A, Relay 2: 15 A, Relay 3: 20 A,
• Range: Up to 150 feet line of sight

• Installation and Use: Indoor Only
• Operating Temperature: 32-104° F (0-40° C)
• Dimensions: 4" x 2.5" x 1.5"

RESOURCES

Zooz Z-Wave Plus S2 MultiRelay Manual (PDF)

ZEN16 Frequently Asked Questions

Advanced Settings

Support Portal

WORKS WITH

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.

GET POWER SUPPLY

DC:OR USB:

HOW IT WORKS

We challenge you to find more bang for your buck! The Zooz MultiRelay combines two 15 A dry contact relays and one 20 A relay so you can cut down on hardware and stay on budget. This device is your answer if you want to control 3 garage doors with a single unit (pair it with a Z-Wave tilt sensor to monitor open/close status of your door). Zooz even has a dedicated Garage Door Opener app for Hubitat and easy to follow steps for SmartThings, making the programming part quick and easy.

If you’d like to automate your gas fireplace, pool pump, or commercial gate, the MultiRelay is capable of all of it and more. Use the MultiRelay to manage your sprinkler system via Z-Wave and connect it with the ZAC98 accessory relay to use your existing sprinkler timer as a trigger. Better yet, create custom if/then rules with your Z-Wave hub to trigger different events and scenarios, like having your sprinkler system turn on once your garage door closes in the morning.

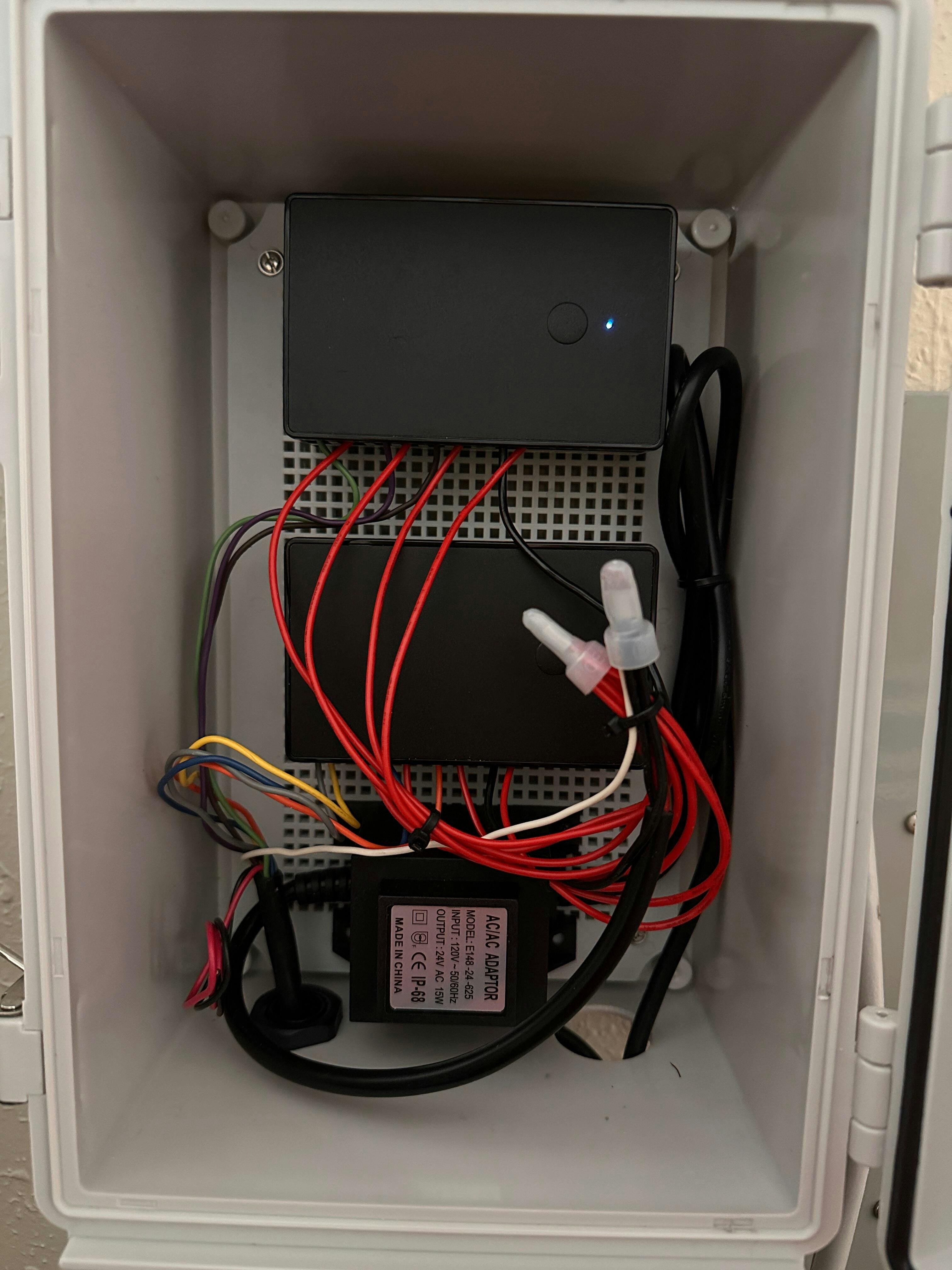

Mount it on your wall using the built-in inserts, and connect wall switches if you’d prefer physical control of the connected devices. The MultiRelay is equipped with the latest S2 security protocol for secure connections and its Z-Wave Plus chip ensures fast and stable communication with your Z-Wave hub.

INSTALLATION

Follow the appropriate diagram to wire the MultiRelay according to your application. If you don't see a diagram describing your set-up, please contact us to request help with the installation. Remember to always turn power off at the breaker before handling the wires. Never apply any voltage to the Sw input terminals!

Once you've completed the wiring, power the MultiRelay up with a USB C and a standard power adapter (sold separately) or a direct connection to 12 / 24 V power source (remember about polarity if using DC voltage).

Now add the MultiRelay to your hub: initiate inclusion (pairing mode) and click the Z-Wave button on the device 3 times quickly. The LED indicator will blink to indicate communication and stay on for 2 seconds to confirm inclusion.

You’ll most likely see 4 new on/off devices in your app:

3 channels for on/off control of each relay
1 master node to control all relays at the same time and to access and adjust advanced settings in (if your hub supports parameter input)

GET ACCESSORY RELAY

TRANSLATES LOW-VOLTAGE SIGNAL FOR ZEN16 DRY CONTACT INPUT TERMINALS (Great for alarm system or sprinkler timer triggers)
